Proxxon UT400/CNC Dividing Table (24423)

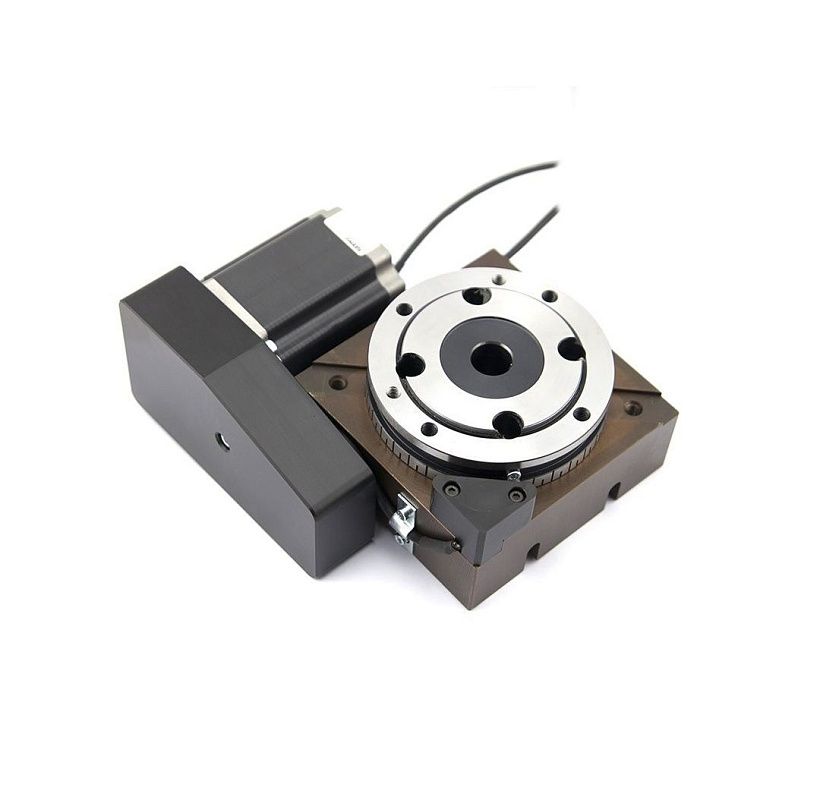

CNC Dividing Table UT 400/CNC

4th axis to the PROXXON Miller FF 500/CNC for use with CNC control unit MCS and software NCCAD. For individual parts and small series production. For manufacturing divisions, gear wheels, helical gearings, screw spindles and (including irregular) profiles. All angle positions can be approached by computer control. Easy horizontal and vertical construction. Driven by powerful step motor (2.0A) through toothed belts, and virtually free from play, adjustable worm gear. The high transfer ratio (40:1) provides enormous torque. Main spindle with 14mm drill hole and flange to suit face plates and all lathe chucks from the PD 400 lathe system. Smallest increment 0.003°. Recognition of reference position through light barrier. NOT for use with CNC Control CU4 (No 24 900).

N.B.  The Chuck and workpiece are not included in the package

Supplied in a wooden box with sliding lid.

SKU: 24 423
